HL18650V Cell

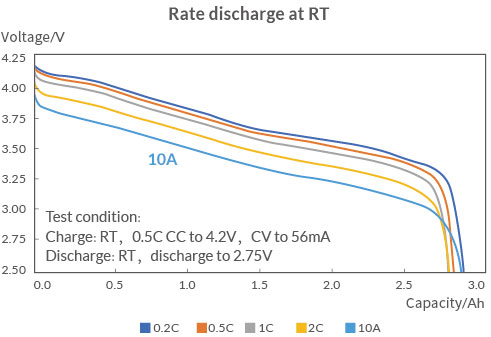

Excellent rate performance: Continuous 10A discharge at room temperature.

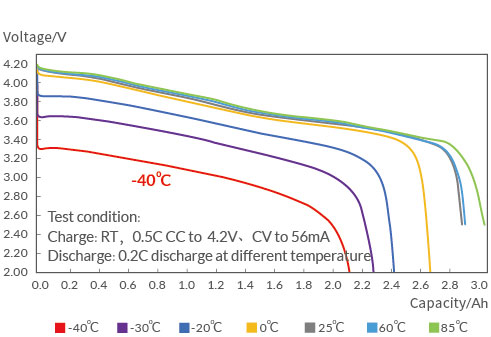

Wide temperature operating range: from -40℃ to 85℃; -40℃/0.2C can release more than 70% capacity.

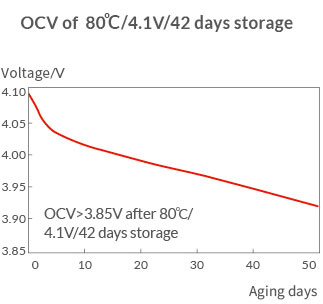

Excellent high temperature (80℃) storage performance: stable voltage and tiny capacity loss after 80℃/4.1V for 42days,.

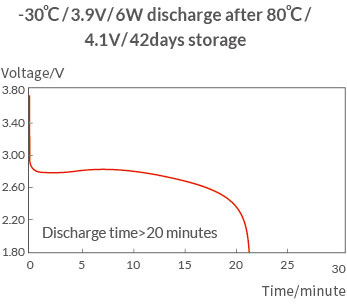

Excellent low temperature discharge performance after high temperature storage: after 42 days of 80℃/4.1V storage, the battery can still meet the requirements of 3.9V/6W discharge at -30℃.

Good cycle performance

Product specifications

Dimension
Diameter

18.3±0.2mm

Height

64.95±0.2mm

Capacity
Min capacity(0.2C)

2800mAh

Typical capacity(0.2C)

2900mAh

Rate capacity

≈2700mAh

Voltage and current
Nominal voltage

3.60V

Working voltage

2.75V-4.20V

Max charge/discharge current

1.4A / 10A

Working temperature
Charge

-20-60℃

Discharge

-40-85℃

Other
Cycle life

>500

-40℃ capacity (0.2C)

≈70%

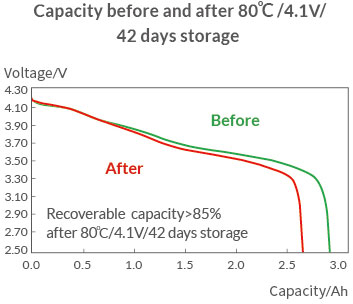

Recovery capacity after 1000h aging

>85%(80℃)

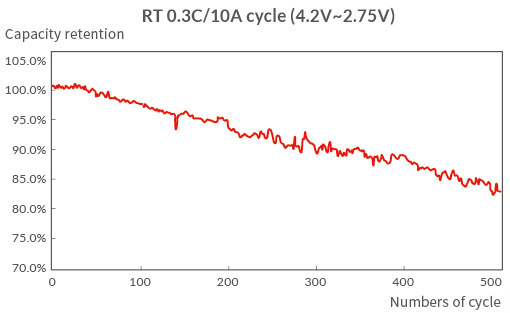

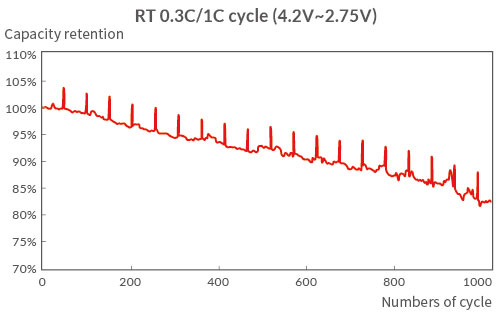

Performance Curve
